Geomembrane LLDPE

Geomembrane LLDPE

Geomembrane LLDPE high seepage control coefficient, chemical stability, anti-aging properties, resistance to plant roots high mechanical strength, low cost, high efficiency, fast construction, environmental protection and non-toxicity, suitable for a variety of landfills or a variety of seepage control applications
Send Inquiry
Description

20231011101833d4008e9bf0754b1595c0c957e3a71a77



Product Description

Geomembrane LLDPE as a new generation of geotechnical seepage control materials, which absorbed the previous geomembrane on the basis of flexibility, but also increased its good extensibility, adapt to deformation and other capabilities, greatly increasing its waterproof seepage control capacity for seepage control and moisture-proofing new waterproofing building materials.



Geomembrane LLDPE is a polymer as the basic raw material of waterproof barrier materials. It has excellent resistance to environmental stress cracking, low temperature resistance, aging resistance, corrosion resistance, a wide range of operating temperatures and long service life. Widely used in domestic waste landfill seepage control, solid waste landfill seepage control, sewage treatment plant seepage control, artificial lake seepage control, tailings treatment and other seepage control projects. And it is a new type of seepage control, corrosion prevention materials, is widely used in a variety of seepage control and anti-corrosion requirements of the project.






27+

years experience


60+

production lines


55

patents


28

technological





Product Advantages
01.

High strength

The geomembrane product has a high yield tensile strength and fracture tensile strength, which can meet the needs of high-standard engineering projects.

02.

Strong seepage prevention ability

The seepage prevention coefficient of geomembrane is very low, which can ensure that the leachate does not leak due to the pad, prevent rainwater from passing through the cover layer and increase the amount of leachate.

03.

Good chemical stability

Geomembrane has good chemical stability, can resist the corrosion of many chemical substances, especially HDPE geomembrane in the landfill design.

04.

Strong weather resistance

Geomembrane has good weather resistance, can be used in a variety of different harsh geological and climate conditions, adapt to geological uneven settlement strain capacity is strong.




It adopts high-quality low-density polyethylene virgin resin, the main component of which is 97.5% high-density polyethylene, about 2.5% carbon black, trace antioxidants and heat stabilizers, anti-aging materials, ultraviolet ray absorbers, and does not use any other additives, fillers and expanders, and it is made by three-layer co-extrusion technology. The resins used are virgin polyethylene resins designed and formulated specifically for flexible impermeable membrane applications.

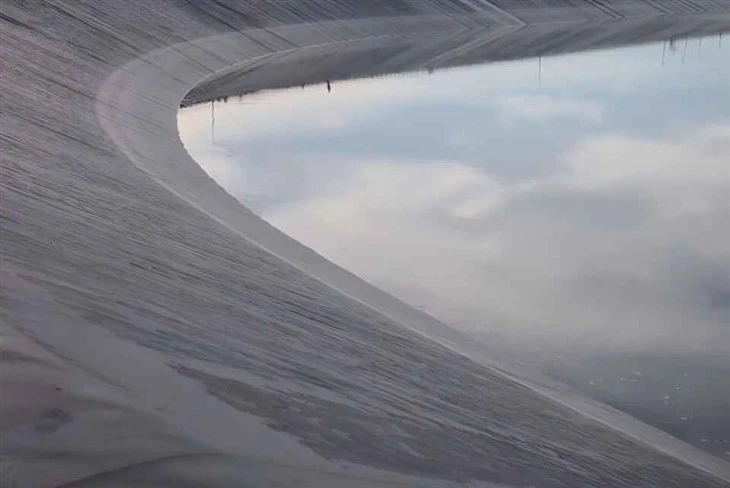

Geomembrane LLDPE are perfectly suited for use in impermeable applications such as landfills and their containment, or any other application where there is significant uneven settlement such as bioreactor landfills. It can be used for landfill, sewage or miscellaneous treatment site containment, river embankments, lake dams, tailings dams, sewage dams and reservoirs, canals, reservoirs, subways, basements and tunnels, culvert lining, roadbeds, and other foundation salt lining applications. Salt seepage control for road and other foundations, horizontal seepage control cover in front of embankments and dams, vertical seepage control layer for foundations, construction cofferdams, waste dumps, freshwater and sea water aquaculture farms, foundations for roads, highways and railroads, waterproofing for expansive soils and humid loess soils, and waterproofing for roofing, etc.



Shouzheng products have been widely praised by farmers in various Chinese cities and overseas markets. Shouzheng has a long history, with its own factory and production line, the annual output can reach 60,000 tons. All the raw materials we use are from the world's top enterprises, and the stable quality is guaranteed. Shouzheng service level is excellent, if you have any questions, you are welcome to call us at any time, to the mail consultation.

source factory

affordable price

qualified staff

advanced technology



manner of packing

We can provide a variety of packing methods. And we can ensure all of the goods that we are shipped without any damage.

product-1230-960
Ton Bag
1
Roll
product-1218-915
Pallet





Basic Info

Model NO.

Geomembrane LLDPE

Width

19-30ft Can Be Spliced To Customize Wider Meters

Thickness

1.00-3.00mm

Length

Customized

Delivery Time

15-30 days

Logo

Accept Customized Logo

MOQ

10 rolls

Color

Black

Transport Package

Ton Bags/Rolls

Specification

19ft*328ft*3mm

Trademark

Sumsight

Port

Qingdao,China

HS Code

3920209010

Production Capacity

50000 Square Meters/ Day



Mechanical Properties

Property

Units

Test Method

Product Specification

Test Frequency

BMS75

BMS10

BMS15

BMS20

BMS25

BMS30

Thickness

MM

ASTMD5199

0.75

1.00

1.50

2.00

2.50

3.00

Per Roll

Density

G/cc

ASTMD1505/D792

0.94

90,000 kg

Tensile Properties

Yield Strength

Break Strength

Yield Elongation

Break Elongation

kN/m

kN/m

%

%

ASTMD 6693

Type IV

11

20

12

700

15

27

12

700

22

40

12

700

29

53

12

700

37

67

12

700

44

80

12

700

9,000 kg

Tear Resistance

N

ASTM D 2005

93

125

187

249

311

374

20,000 kg

Puncture Resistance

N

ASTM D 4833

240

320

480

640

800

960

20,000 kg

Stress Crack Resistance

hr.

ASTM D 5397

500 hr.

Per GRI GM-10

Carbon Black Content

%

ASTM D 4218

2.0-3.0%

9,000 kg

Reference Properties

Oxidative Induction Time

Standard OIT

High Pressure OIT

min

ASTM D 3895

ASTM D 5885

100 min.

500 min.

90,000 kg

Oven Aging at 85℃ Retained After 90 Days

Standard OIT -%

High Pressure OIT -%

%

ASTM D 5721

ASTM D 3895

ASTM D 5885

55 %

80 %

Per Each Formulation

UV Resistance

High Pressure OIT -% Retained After 1600hrs

%

ASTM D 5885

50%

Per Each Formulation

Melt Index, Condition 190℃/2.16kg



ASTM D 1238

0.20g/10min
